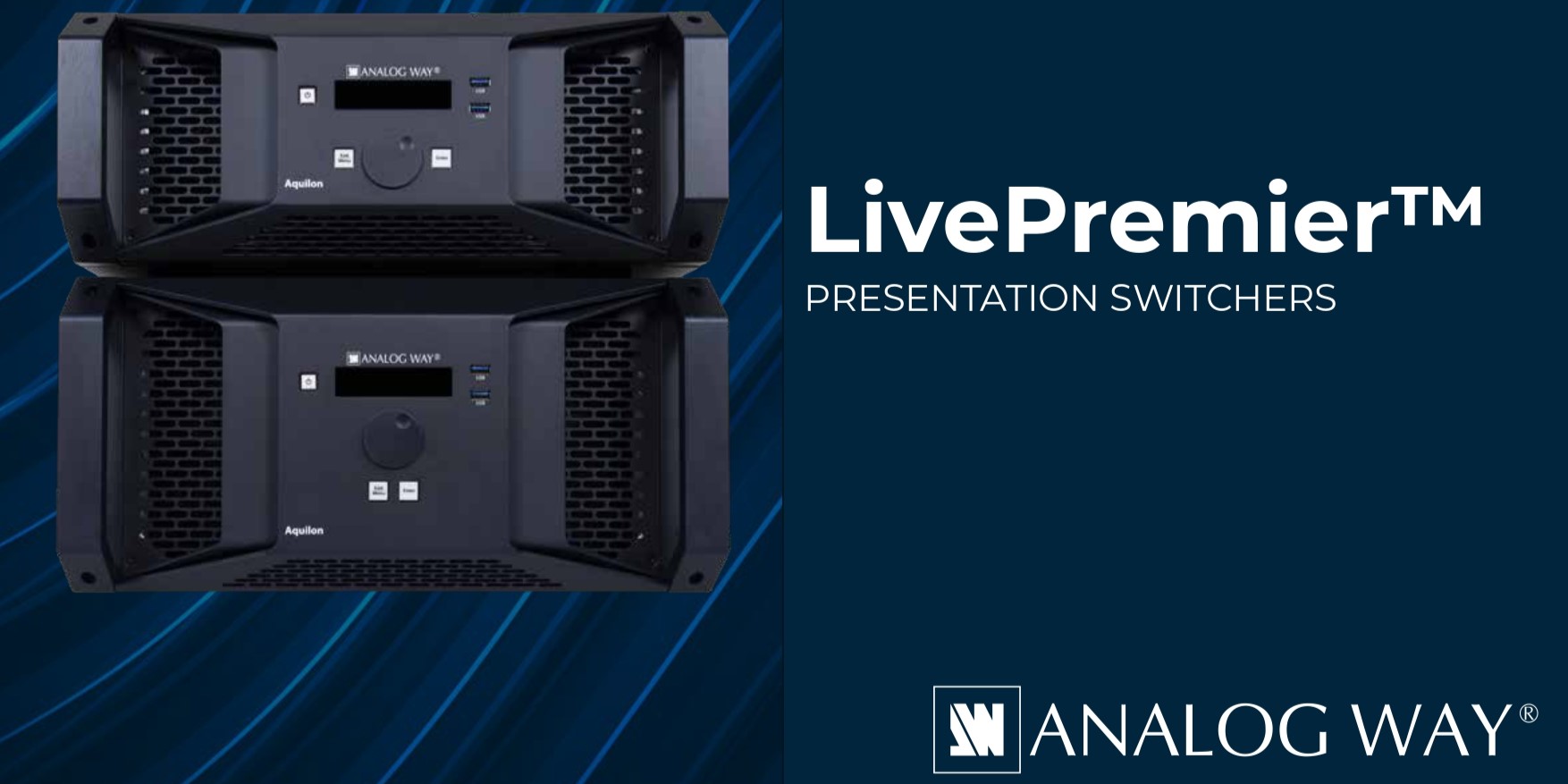

LivePremier™ is a full range of modular and scalable 4K/8K multi-screen presentation systems and videowall processors, delivering uncompromising presentation experiences to high-end staging and premium system integration. The LivePremier™ series is comprised of five high-performance  pre-configured products (Aquilon RS alpha, RS1, RS2, RS3 and RS4) as well as two fully customizable models (Aquilon C and C+) that can be tailored to match the requirements of any project or event

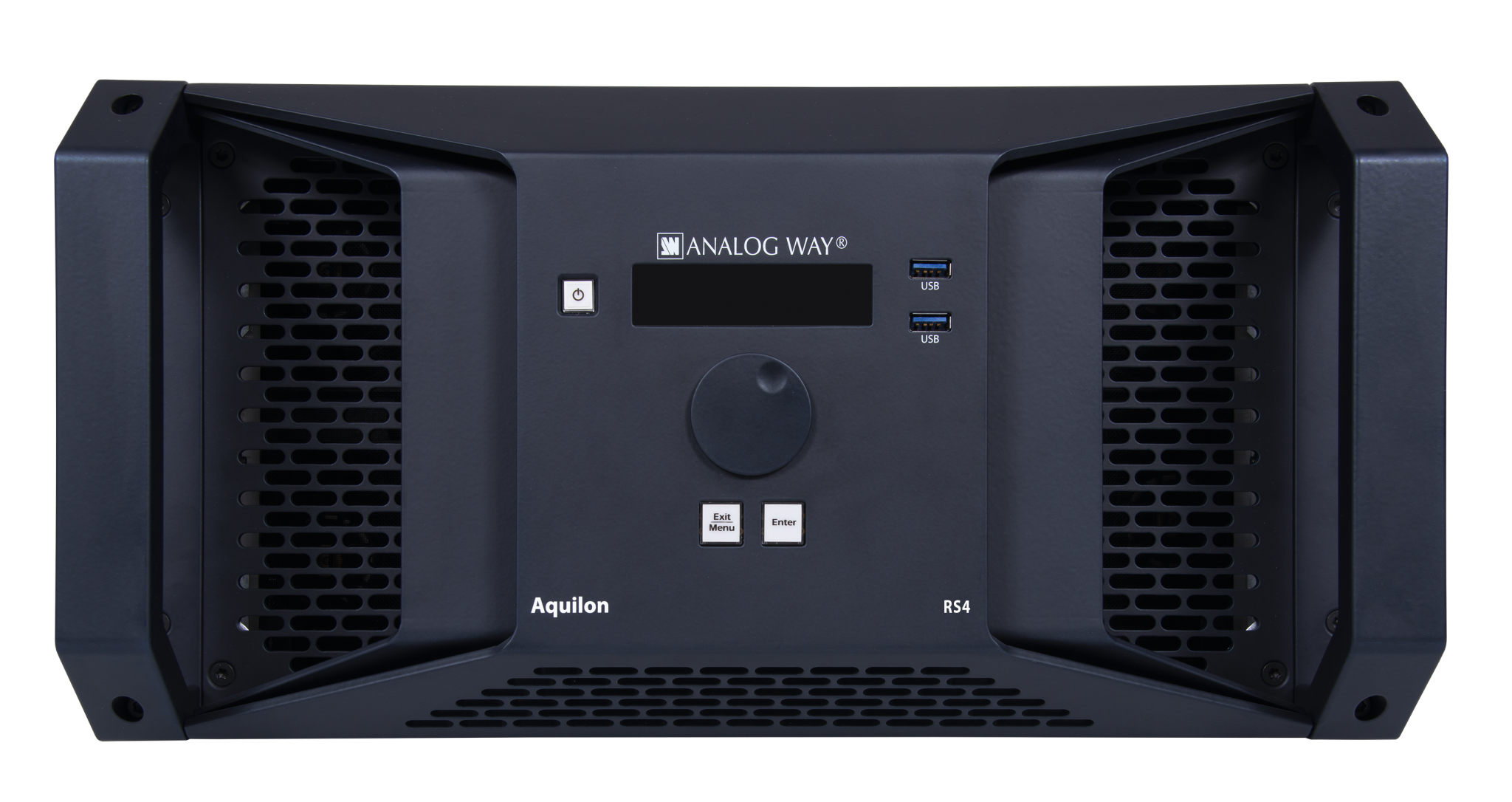

Aquilon RS4

  • Highly ruggedized 5RU chassis
  • 24x 4K60p seamless inputs
  • 16x 4K60p active outputs
  • 2x dedicated 4K Multiviewer outputs
  • 12x 4K or 24x DL/2K mixing layers
  • Live background available on all the outputs
  • 120 Mpx throughput on PGM at 10 bits 4:4:4 @60Hz
  • 24x 4K or 48x 2K concurrent still images

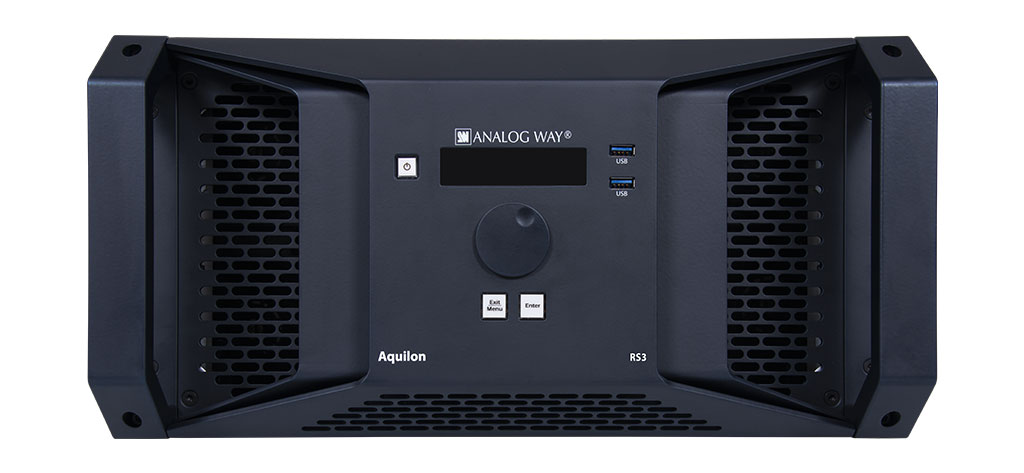

Aquilon RS3

  • Highly ruggedized 5RU chassis
  • 24x 4K60p seamless inputs
  • 12x 4K60p active outputs
  • 2x dedicated 4K Multiviewer outputs
  • 8x 4K or 16x DL/2K mixing layers
  • Live background available on all outputs
  • 80 Mpx throughput on PGM at 10 bits 4:4:4 @60Hz
  • 24x 4K or 48x 2K concurrent still images

Aquilon RS2

  • Highly ruggedized 4RU chassis
  • 16x 4K60p seamless inputs
  • 12x 4K60p active outputs
  • 2x dedicated 4K Multiviewer outputs
  • 8x 4K or 16x DL/2K mixing layers
  • Live background available on all outputs
  • 80 Mpx throughput on PGM at 10 bits 4:4:4 @60Hz
  • 12x 4K or 24x 2K concurrent still images

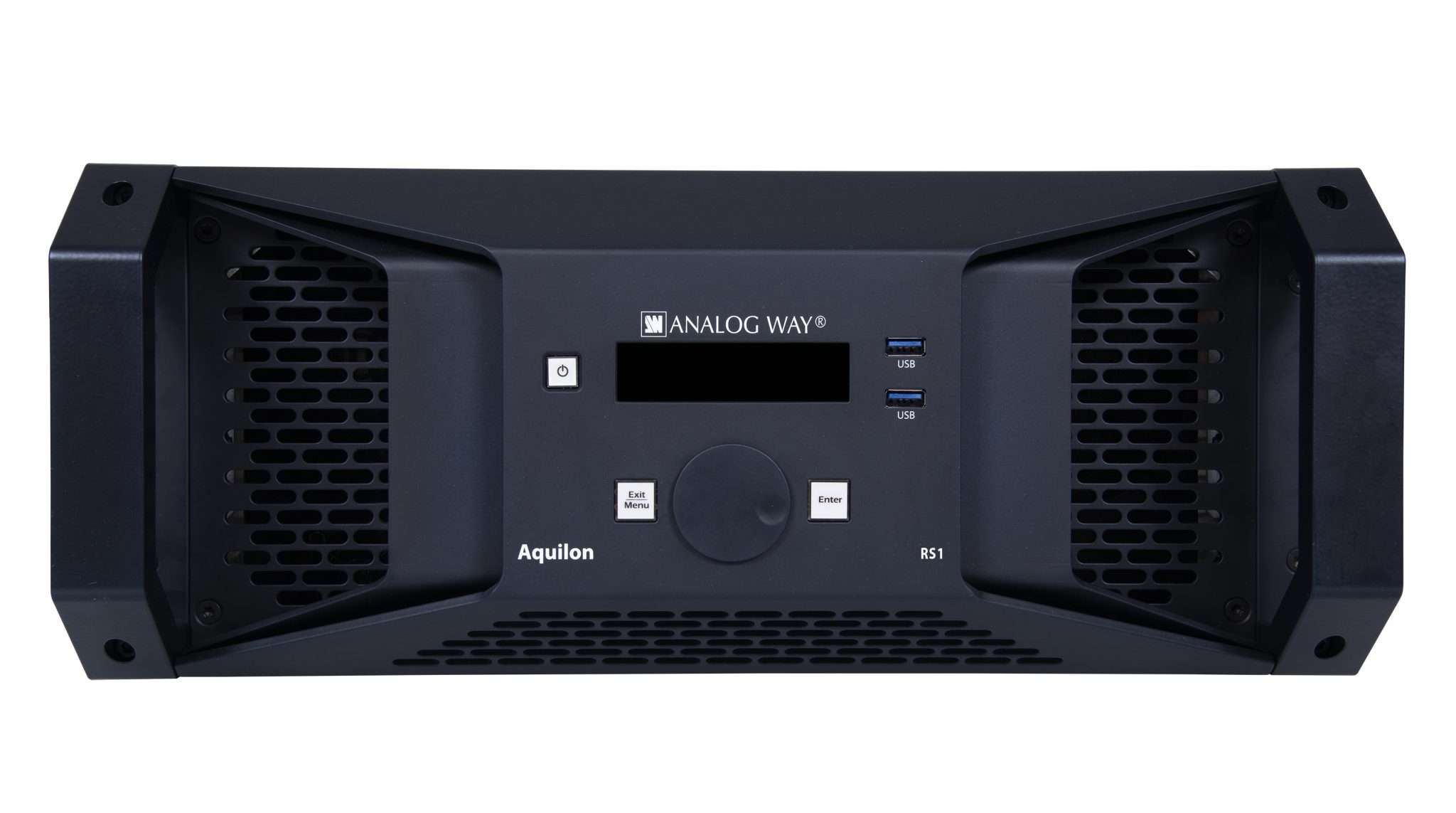

Aquilon RS1

  • Highly ruggedized 4RU chassis
  • 16x 4K60p seamless inputs
  • 8x 4K60p active outputs
  • 2x dedicated 4K Multiviewer outputs
  • 4x 4K or 8x DL/2K mixing layers
  • Live background available on all outputs
  • 40 Mpx throughput on PGM at 10 bits 4:4:4 @60Hz
  • 12x 4K or 24x 2K concurrent still images

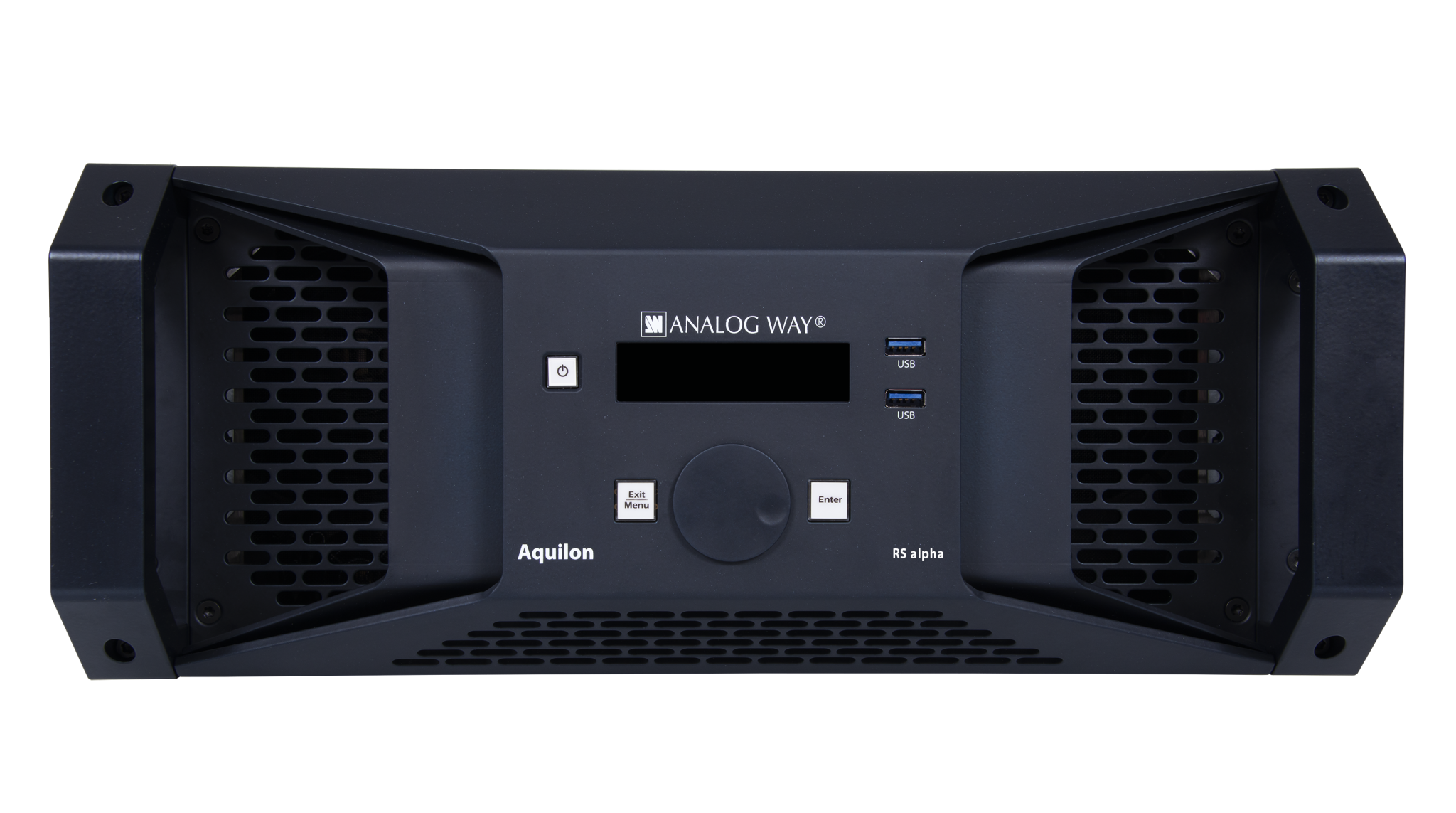

Aquilon RS alpha

  • Highly ruggedized 4RU chassis
  • 8x 4K60p seamless inputs
  • 4x 4K60p active outputs
  • 2x dedicated 4K Multiviewer outputs
  • 4x 4K or 8x DL/2K mixing layers
  • Live background available on all outputs
  • 40 Mpx throughput on PGM at 10 bits 4:4:4 @60Hz
  • 12x 4K or 24x 2K concurrent still images

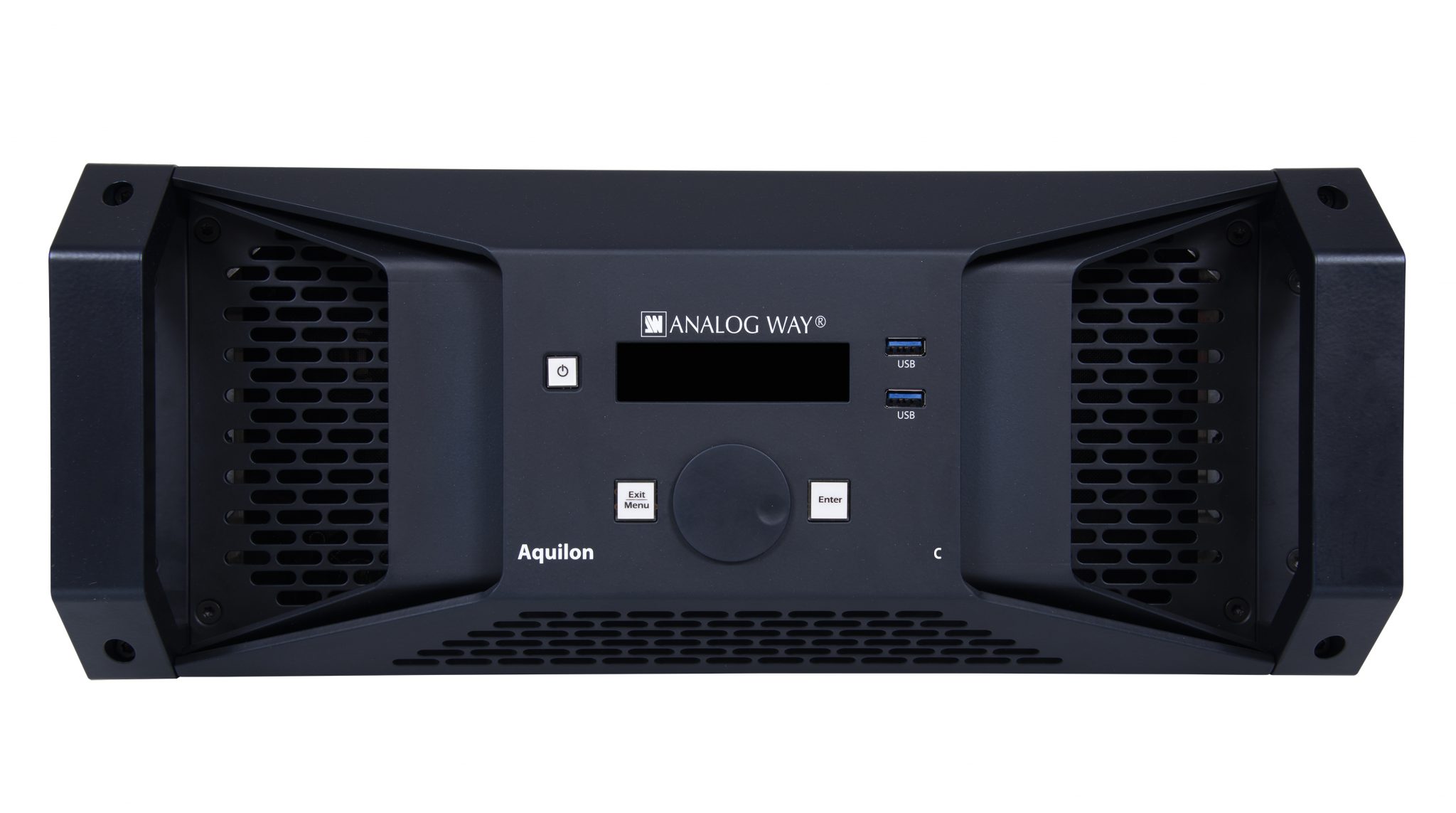

Aquilon C

  • Highly ruggedized 4RU chassis
  • Fully customizable
  • Up to 16x 4K60p seamless inputs
  • Up to 16x 4K60p active outputs
  • 2x dedicated 4K Multiviewer outputs
  • Up to 8x 4K or 16x DL/2K mixing layers
  • Live background available on all outputs
  • Up to 80 Mpx throughput on PGM at 10 bits 4:4:4 @60Hz
  • Up to 12x 4K or 24x 2K concurrent still images

Aquilon C+

  • Highly ruggedized 5RU chassis
  • Fully customizable
  • Up to 24x 4K60p seamless inputs
  • Up to 20x 4K60p active outputs
  • 2x dedicated 4K Multiviewer outputs
  • Up to 12x 4K or 24x DL/2K mixing layers
  • Live background available on all outputs
  • Up to 120 Mpx throughput on PGM at 10 bits 4:4:4 @60Hz
  • Up to 24x 4K or 48x 2K concurrent still images
