| DESIGN |

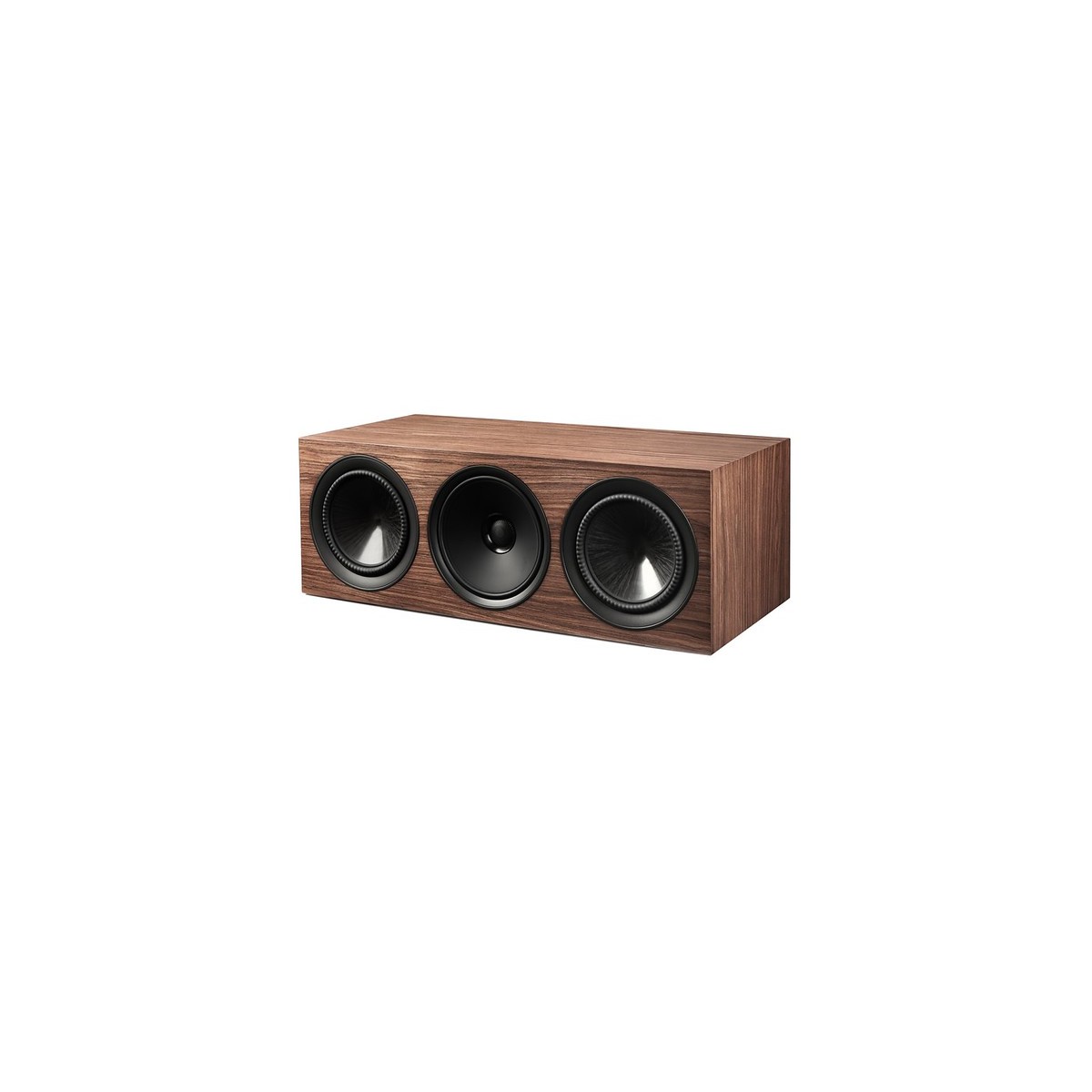

4-driver, 3-way sealed LCR speaker with AL-MAC, AL-MAG, Carbon-X, OSW™, and PPA™ |
| CROSSOVER |
2nd Order Electro-acoustic at 1.5kHz (tweeter/midrange) 2nd Order Electro-acoustic at 650Hz (midrange/woofer) |
| FREQUENCY RESPONSE ON-AXIS |
±3dB from 75Hz – 23kHz |
| FREQUENCY RESPONSE 30° OFF-AXIS |
±3dB from 75Hz – 20kHz |
| HIGH FREQUENCY DRIVER |
1” (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) and Perforated Phase-Aligning (PPA™) Tweeter Lens, ferro-fluid damped / cooled |
| MIDRANGE FREQUENCY DRIVER |
Coaxial 6” (152mm) AL-MAG™ Cone, a 2” high-temp multilayered voice coil with Apical™ former, Patented Dual-Sync™ Continuous Flux Motor |
| BASS FREQUENCY DRIVER |
Two 6” (152mm) Ultra-High Excursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™) with Vertical Mounting System, and a 1” hightemp multi-layered voice coil with ventilated Apical™ former |
| SENSITIVITY ROOM / ANECHOIC |
93dB / 90dB |
| LOW FREQUENCY EXTENSION |
50Hz (DIN) |
| SUITABLE AMPLIFIER POWER RANGE |
15-120 Watts |
| MAXIMUM INPUT POWER |
80 Watts |
| IMPEDANCE |
Compatible with 8 ohms |
| DIMENSIONS HXWXD (INCLUDES GRILLE). |
8.3” x 23.4” x 12” (21.1 cm x 59.4 cm x 30.5 cm) |
| WEIGHT |
31.1 lbs (14.1 kg) each |
| FINISHES |
Piano Black, Black Walnut, Walnut, Satin White |
