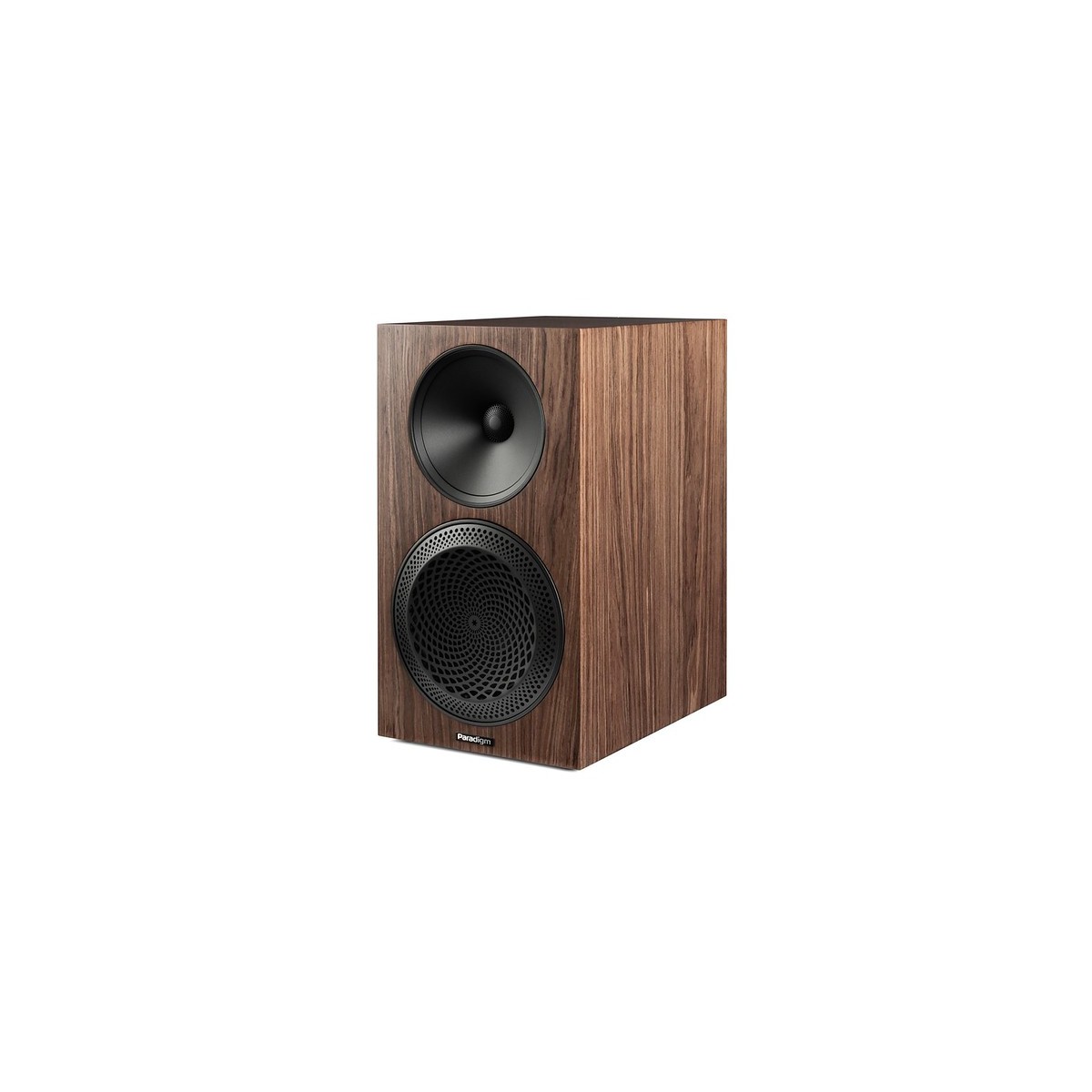

| DESIGN | 2-driver, 2-way ported bookshelf with AL-MAC, AL-MAG, OSW™, and PPA™ |
| CROSSOVER | 2nd Order Electro-acoustic at 1.1kHz (tweeter/midwoofer) |
| FREQUENCY RESPONSE ON-AXIS | ±3dB from 58Hz – 23kHz |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±3dB from 58Hz – 20kHz |
| HIGH FREQUENCY DRIVER | 1” (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) and Perforated Phase-Aligning (PPA™) Tweeter Lens, ferro-fluid damped / cooled |
| MID/BASS FREQUENCY DRIVER | 6” (152mm) Ultra-High-Excursion AL-MAG™ Cone with Perforated Phase-Aligning (PPA™) Lens, Gen3 Active Ridge Technology (ART™) with Vertical Mounting System, and a 1” high-temp multi-layered voice coil with ventilated Apical™ former |
| SENSITIVITY ROOM / ANECHOIC | 91dB / 88dB |
| LOW FREQUENCY EXTENSION | 36Hz (DIN) |
| SUITABLE AMPLIFIER POWER RANGE | 15 – 130 Watts |
| MAXIMUM INPUT POWER | 80 Watts |
| IMPEDANCE | Compatible with 8 ohms |
| DIMENSIONS HXWXD (INCLUDES GRILLE). | 14.6” x 8.3” x 12.9” (37.1 cm x 21.1 cm x 32.8 cm) |
| WEIGHT | 20.1 lbs (9.1 kg) each |
| FINISHES | Piano Black, Black Walnut, Walnut |
